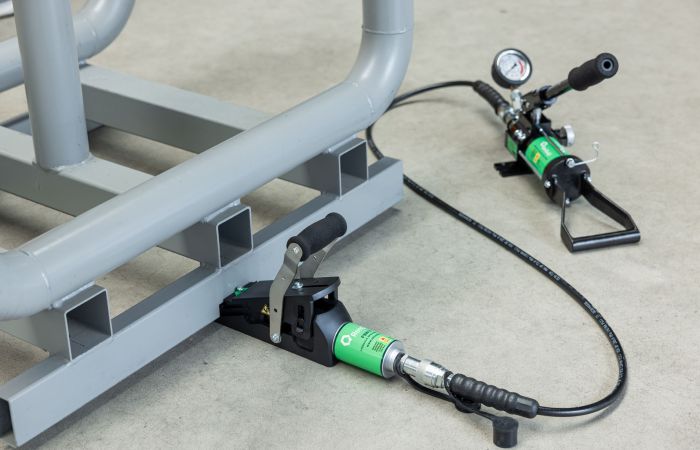

A Hydraulic Lifting Wedge Jack with a combined hydraulic cylinder and pump unit.
The WJ19P lifting wedge jack can enter an access gap as small as 9.5mm (0.37”) and produce a maximum lifting force of 183kN (18.3T) up to a height of 67.5mm (2.66”) when fully actuated.
The WJ19P tools can be used in any orientation making them suitable for lifting, pushing and spreading applications.
High durability, High Quality, Low Maintenance design
Tool Weight: 9.5Kg (20.9lbs)
Max Spreading Force: 183kN (18.3T)
Spreading Distance: 9.5mm (0.37”) to 67.5mm (2.66”) when used with stepped blocks
Robust Moulded Case for easy transportation and storage
Kit weight:
Kit content:
14Kg (30.9lbs)
1 x WJ19K tool with combined hydraulic cylinder and pump unit
1 x Pump actuating handle
Kit dimensions:
1 x Safety block
580mm x 340mm x 180mm
1 x Stepped block with securing screw and allen key
