A range of sealed hydraulic hand pumps that are used to provide up to 10,000psi / 700Bar of hydraulic pressure to single acting hydraulic systems.

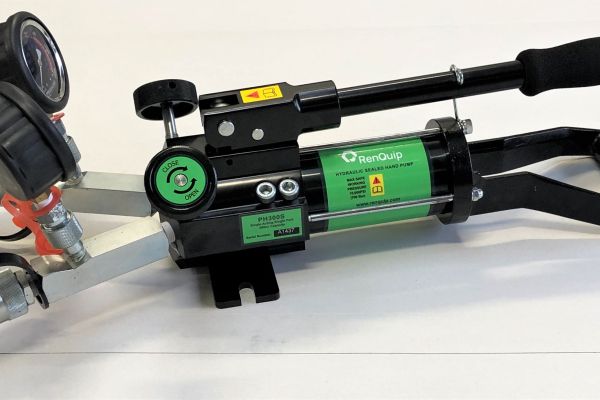

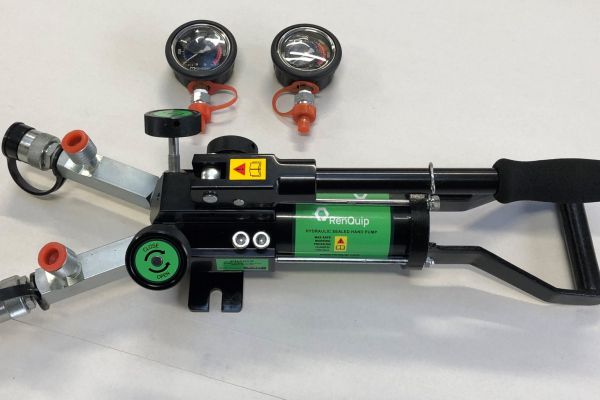

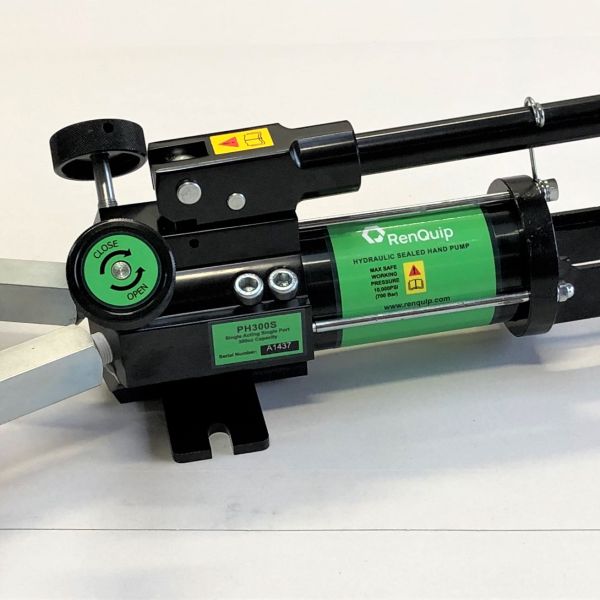

The PH300T, PH580T and PH1100T pumps are equipped with two outlet ports with individual control valves, this enables the operator to control two hydraulic systems independently or synchronized if both vales are left open. The PH pump range are equipped with a flexible reservoir that contracts when oil is pumped from the reservoir into the system – this removes the requirement for an air vent and eliminates the possibility of accidental oil spillage from the reservoir. The flexible reservoir enables the pump to be used in any orientation without the risk of air entering the hydraulic system. It also prevents contamination or debris entering the hydraulic system from the atmosphere.
Max Pressure: 10,000psi 700bar
High Durability, High Quality, Low Maintenance Design
100% Pressure Tested and Certified
Two Speed Design for faster operation and lower handle force
