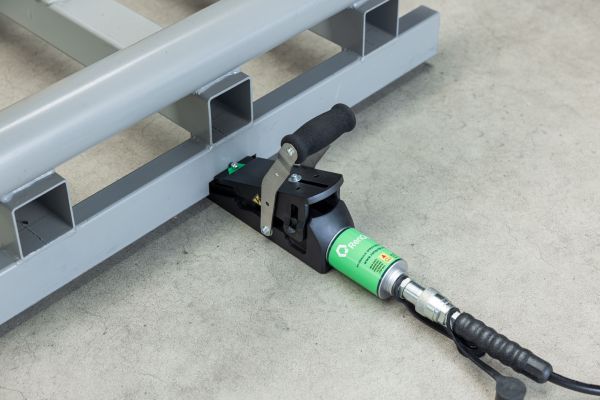

A Hydraulic Lifting Wedge Jack actuated by 700bar (10,000psi) hydraulics.

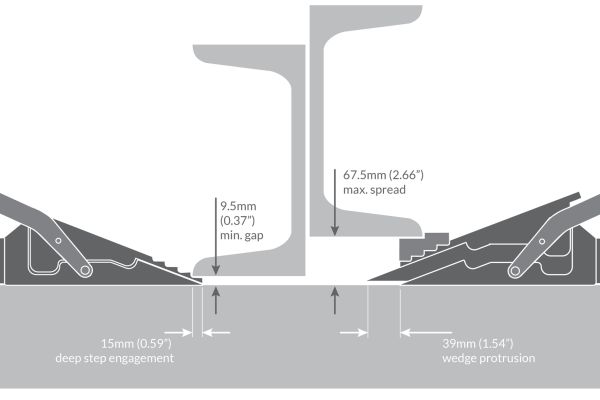

The WJ19K lifting wedge jack can enter an access gap as small as 9.5mm (0.37”) and produce a maximum lifting force of 183kN (18.3T) up to a height of 67.5mm (2.66”) when 700bar (10,000psi) of hydraulic pressure is applied. Multiple tools can be linked together to produce greater lifting forces.
The WJ19K tools can be used in any orientation making them suitable for lifting, pushing and spreading applications.
High durability, High Quality, Low Maintenance design.
Tool Weight: 8.5Kg (18.7lbs)
Max Spreading Force: 183kN (18.3T)
Spreading Distance: 9mm (0.37”) to 67.5mm (2.66”) (when used with stepped blocks)
Robust Moulded Case for easy transportation and storage.
Kit Weight:
Kit Content:
13Kg (28.7lbs)
1 x WJ19K Tool
1 x Safety block
Kit dimensions:
1 x Stepped blocks with securing screw and allen key
